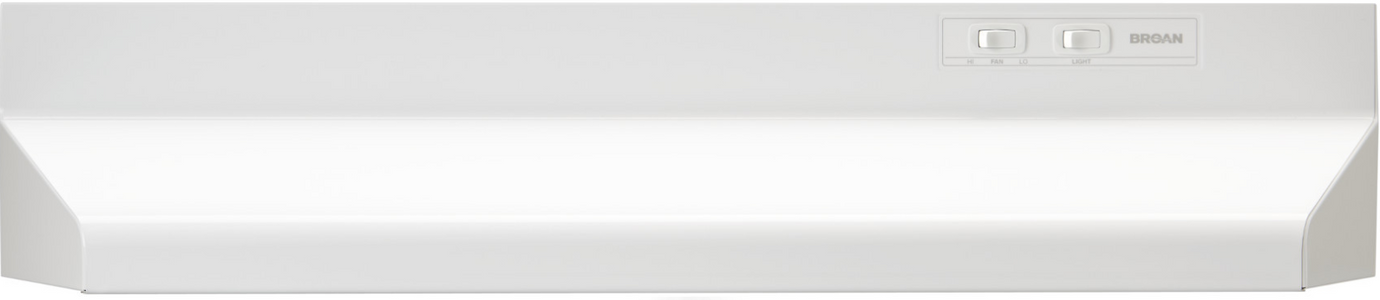

    Broan® 40000 Series 21" White Under Cabinet Range Hood

    Broan

    Model #:

    402101

    At a Glance

    Product Dimensions 6"h x 21"w x 17.50"d

    The Broan 40000 series is made for a wide range installations and comes in a variety of appliance matching colors and widths. The durable under cabinet hood installs as 3-1/4 in. x 10 in. ducted opening only and ducts either vertically or horizontally. The hood features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes duct adapter with built-in damper.Read More

    $156.29
    View Delivery & Pickup Options
    Add ZIP Code

    What We Offer

    Services

    View Options

    None Selected

    Get to know this product.

    Product Overview

    Product Overview

    Installs as 3-1/4" x 10" ducted only

    160 CFM, 6.5 sone (vertical or horizontal discharge) performance

    Dishwasher-safe aluminum grease filter

    Accepts up to 75-watt light (bulb sold separately)

    Duct connector with built-in damper included

    A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)

    Useful Documents
    Installation Guide
    Range Hood Cord Kit Installation Guide
    Spec Sheet
    Compliant Statement
    Catalog
    Specifications

    General Specs

    Width (in.)21
    Height (in.)6
    Duct Size (in.)3.25" x 10"
    Depth (in.)17.50
    Collection40000 Series
    ColorWhite
    Manufacturer Warranty1 Year
    PositioningStationary
    Color Finish NameWhite
    Range Hood TypeUnder Cabinet
    ENERGY STAR CertifiedNo
    Appliance Fit Width (in.)21
    Maximum CFM160
    Voltage120
    Amp2

    Overview

    Sones6.5
    Light Number Of Levels1
    Light Bulb Wattage75W
    Light Bulb Recommended TypeA19
    Light Bulb Quantity1
    Filter Quantity1
    Filter TypeAluminum
    Motor Number Of Speeds2
    Damper IncludedYes
    Wattage240
    Switch Control TypeRocker
    Duct Connector Size3-1/4" x 10"
    Duct DirectionHorizontal/Vertical
    Duct ShapeRectangular
    Duct Diameter3-1/4" x 10"
    Duct Height Rectangular3-1/4"
    Duct Width Rectangular10"
