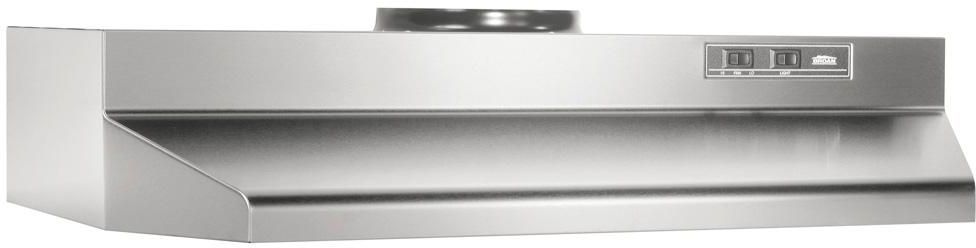

The 42000 series offers an effective and durable under-the-cabinet hood solution for vertical discharge installations. The range hood is designed for 7 in. round vertical duct attachment. The hood comes in a variety of appliance matching colors and widths, and features a fan designed for years of trouble free service, an easy to clean grease filter, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation. Includes built-in 7 in. duct adapter.
Sones | 6 |
---|---|
Light Number Of Levels | 1 |
Light Bulb Wattage | 75W |
Light Bulb Recommended Type | A19 |
Light Bulb Quantity | 1 |
Filter Quantity | 1 |
Filter Type | Aluminum |
Motor Number Of Speeds | 2 |
Wattage | 240 |
Switch Control Type | Rocker |
Duct Connector Size | 7" Round |
Duct Direction | Vertical |
Duct Shape | Round |
Duct Diameter | 7" |
Width (in.) | 36 |
---|---|
Height (in.) | 6 |
Duct Size (in.) | 7 |
Depth (in.) | 17.50 |
Collection | 42000 Series |
Appliance Color | Stainless Steel |
Positioning | Stationary |
Manufacturer Warranty | 1 Year |
Color Finish Name | Stainless Steel |
Range Hood Type | Under Cabinet |
ENERGY STAR Certified | No |
Appliance Fit Width (in.) | 36 |
Maximum CFM | 190 |
Voltage | 120 |
Amp | 2 |
You Might Also Need
Installation Services
Under Cabinet Hood Install
$275.00
Haul Away
Appliance Haul-Away
$10.00
Installs as 7" round ducted only
190 CFM, 6.0 Sone (vertical discharge) performance – HVI 2100 Certified
Dishwasher-safe aluminum grease filter (model BP29)
A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
Built-in 7" adapter
BP87 dampers sold separately
This range hood can work in an ADA-compliant application
